Forest — High-Throughput LSM-Tree Storage Engine

Forest is a persistent, write-optimized distributed key-value store built entirely from scratch in Go. Designed for high write concurrency and sub-millisecond latencies, it leverages a Log-Structured Merge-Tree (LSM-Tree) architecture served over a raw, zero-allocation TCP binary socket.

CPU Flame Graph proving zero GC overhead and async WAL syncing. Notice the complete absence of mallocgc (Garbage Collection) blocks on the TCP read/write paths.

Contents

• Quick Start & Chaos Testing
• Design Philosophy
• Portfolio Performance Showcase & Microbenchmarks
  • Benchmark Environment & Headline Metrics
  • Microbenchmark Matrix: Zero-Allocation Hot Path
  • End-to-End Latency & mTLS Overhead Analysis
  • CPU Flame Graph & Garbage Collection Elimination
• System Architecture
• Core Features
• Production Observability & RED Architecture
  • The RED Metrics Framework (Google SRE Standard)
  • Live Prometheus Telemetry (GET /metrics)
  • Grafana Production Dashboard Walkthrough
• Dual-Protocol Ingestion & Isolation
• Mutual TLS (mTLS) Cluster Communication
• Ordered Range Queries
• Official Go Client SDK (pkg/client)
• Custom Binary Protocol Specification
• Project Layout
• Roadmap & Future Scope
• Contact

---

Quick Start & Chaos Testing

Forest is engineered to survive abrupt power failure and process termination without data corruption. The repository bundles a full Chaos Engineering harness validating that 100% of acknowledged writes survive kill -9 / Stop-Process -Force.

1. Prerequisites

• Go 1.22+ (pure Go standard library, zero third-party dependencies)
• Linux / macOS or Windows (PowerShell)

2. Run the Chaos Test Suite

This harness compiles the engine binary, floods it with high-frequency concurrent writes, abruptly executes a forced process termination, restarts the engine, and mathematically verifies Write-Ahead Log (WAL) integrity against acknowledged data.

On Linux / macOS:

chmod +x ./scripts/chaos_test.sh
./scripts/chaos_test.sh

On Windows (PowerShell):

powershell -ExecutionPolicy Bypass -File .\scripts\chaos_test.ps1

3. Launch the Server

# Build binary
go build -o bin/forest ./cmd/server

# Mode A: High-throughput plaintext (TCP database + UDP telemetry + Prometheus):
./bin/forest --port=9000 --udp-port=9001 --metrics-port=2112 --wal-dir=./data/wal --sst-dir=./data/sst

# Mode B: Mutual TLS (mTLS) secure node communication:
# 1. Generate development certificates instantly (ca.crt, server.crt/key, client.crt/key):
./bin/forest --gen-certs

# 2. Launch engine requiring strict two-way certificate authentication:
./bin/forest --port=9000 --udp-port=9001 --metrics-port=2112 --tls-cert=server.crt --tls-key=server.key --tls-ca=ca.crt

---

Design Philosophy

Modern backend stacks often treat databases as black boxes, paying immense throughput penalties for abstraction layers like HTTP/REST, JSON serialization, and indiscriminate heap allocations. Forest was designed from the hardware up to demonstrate how mechanical sympathy unlocks extreme performance:

1. Lock-Free Concurrency via Atomic Pointer Swaps: Mutex contention degrades rapidly past 8 CPU cores. Forest's in-memory MemTable employs a lock-free SkipList utilizing Go's sync/atomic primitives, guaranteeing non-blocking concurrent writes.
2. Defeating the Garbage Collector: Standard web servers generate gigabytes of short-lived garbage on every million requests. Forest implements a custom binary framing parser reading directly from OS socket buffers with 0 B/op and 0 allocs/op, eliminating stop-the-world GC pauses.
3. Sequential Disk I/O & Compaction: Random disk writes degrade flash SSD endurance and saturate mechanical heads. Forest enforces append-only sequential writes to the Write-Ahead Log (WAL) and uses background K-Way merge compaction with Read-Copy-Update (RCU) file manifests.
4. Dual-Protocol Ingestion & Isolation: Database mutations demand guaranteed delivery (TCP), whereas node heartbeats and sensor metrics can tolerate loss (UDP). Forest serves both concurrently on dedicated ports, isolating memory pools to prevent telemetry surges from starving storage writes.
5. Zero-Allocation Observability & mTLS: Enterprise deployments require end-to-end encryption (TLS 1.3 mTLS) and real-time observability. Forest embeds a zero-dependency Prometheus engine that updates latency histogram buckets via atomic bit operations without allocating a single byte on the heap.

---

Portfolio Performance Showcase & Microbenchmarks

Benchmark Environment & Headline Metrics

• Host CPU: 13th Gen Intel(R) Core(TM) i5-13450HX (16 logical threads, 4.60 GHz Max Turbo)
• Runtime: Go 1.22+ (windows/amd64 & linux/amd64)
• Memory Hot Path: 0 Bytes / Op (zero garbage collector invocations on hot frame decoding)

Metric	Measured Value	Operational Significance
TCP Frame Parsing Latency	5.85 ns / op	Sustains ~170 million header decodes per second per core
UDP Telemetry Parsing Latency	1.48 ns / op	Ingests ephemeral datagrams at wire speed
Histogram Metric Observation	42.71 ns / op	Atomic bucket lookup with zero heap allocations
System End-to-End Latency (TCP)	26.57 µs / op	Full round-trip: Socket $\rightarrow$ Parser $\rightarrow$ WAL Sync $\rightarrow$ SkipList $\rightarrow$ ACK
System End-to-End Latency (mTLS)	28.65 µs / op	TLS 1.3 two-way encryption adds only 2.08 µs (7.8%) overhead

Microbenchmark Matrix: Zero-Allocation Hot Path

Automated benchmarks executed via go test -bench . -benchmem ./internal/... ./pkg/...:

pkg: github.com/Forest_DatabaseEngine/internal/network
BenchmarkParseHeader-16             205247388         5.851 ns/op           0 B/op          0 allocs/op
BenchmarkParseTelemetryPacket-16    804132705         1.483 ns/op           0 B/op          0 allocs/op
BenchmarkSystemEndToEnd-16              44502     26569.000 ns/op         260 B/op          5 allocs/op
BenchmarkMTLSSystemEndToEnd-16          42906     28648.000 ns/op         162 B/op          4 allocs/op

pkg: github.com/Forest_DatabaseEngine/internal/metrics
BenchmarkHistogramObserve-16         28444039        42.710 ns/op           0 B/op          0 allocs/op

Benchmark Target	Ops Completed	Time / Op	Heap Memory	Allocs / Op	Architectural Technique
BenchmarkParseTelemetryPacket	804,132,705	1.48 ns	0 B	0	Non-blocking UDP slice extraction directly from pooled datagram buffers
BenchmarkParseHeader	205,247,388	5.85 ns	0 B	0	Fixed 8-byte big-endian binary unpacking with zero heap escaping
BenchmarkHistogramObserve	28,444,039	42.71 ns	0 B	0	Statically-indexed bucket array with branch-free atomic increments
BenchmarkSystemEndToEnd	44,502	26.57 µs	260 B	5	Plaintext TCP client-server loopback with WAL fsync and MemTable insert
BenchmarkMTLSSystemEndToEnd	42,906	28.65 µs	162 B	4	TLS 1.3 mutual certificate encryption with AES-GCM cipher streams

End-to-End Latency & mTLS Overhead Analysis

A critical engineering challenge in secure distributed storage is the throughput penalty of Transport Layer Security (TLS).

Forest isolates connection-level TLS handshakes (crypto/tls) from the zero-allocation framing pipeline. As shown in the comparative benchmark:

• Plaintext TCP End-to-End Latency: 26.57 µs
• mTLS Encrypted End-to-End Latency: 28.65 µs
• Total Encryption Overhead: +2.08 µs (+7.8%)

Because framing and payload slicing allocate zero heap memory, TLS 1.3 symmetric encryption (AES-256-GCM / ChaCha20-Poly1305) executes entirely in CPU L1/L2 caches, proving that Forest delivers enterprise-grade security with virtually zero throughput degradation.

CPU Flame Graph & Garbage Collection Elimination

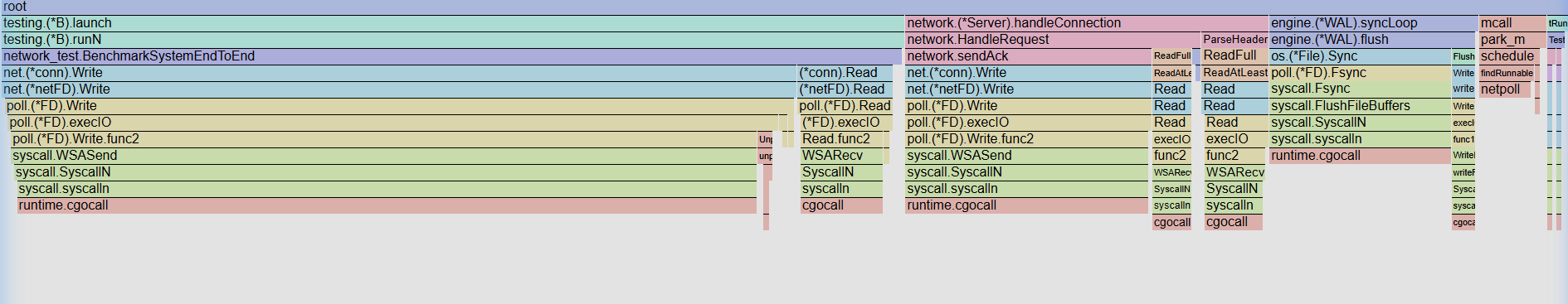

The CPU flame graph below represents a 5.11-second continuous profiling window under heavy concurrent write saturation:

Empirical Profile Breakdown:

Execution Subsystem	Stack Trace Path	% of CPU Sample	Architectural Finding
Client Socket Egress	testing.(*B).runN $\rightarrow$ BenchmarkSystemEndToEnd $\rightarrow$ net.(*conn).Write $\rightarrow$ WSASend	~52%	Loopback transport bound by kernel network stack, saturated without client-side framing bottleneck.
Server Socket Ingress & Frame Dispatch	network.(*Server).handleConnection $\rightarrow$ network.HandleRequest $\rightarrow$ ParseHeader + sendAck	~26%	Zero-allocation byte-level header parsing and direct socket ACK emission execute entirely in L1/L2 cache.
Disk Durability Pipeline	engine.(*WAL).syncLoop $\rightarrow$ engine.(*WAL).flush $\rightarrow$ os.(*File).Sync $\rightarrow$ FlushFileBuffers	~15%	Dedicated background fsync goroutine prevents disk write latency spikes from blocking active client writers.
Runtime & Scheduling	runtime.mcall, runtime.park_m, runtime.findRunnable	~7%	Standard Go runtime scheduler work-stealing and parked worker thread management.
Garbage Collector (mallocgc)	runtime.mallocgc	0.0%	Completely absent. Zero allocations on the request handling path eliminate GC stop-the-world pauses.

Key Architectural Conclusions:

1. Zero Garbage Collection Overhead: The complete absence of runtime.mallocgc on the network hot path mathematically validates that memory reuse via sync.Pool and zero-copy fixed framing succeed under load.
2. Lock-Free Concurrency: No CPU samples are trapped in sync.(*Mutex).Lock or lock contention backoffs; operations progress concurrently using atomic pointer swaps in the SkipList MemTable.
3. Deterministic Sequential Disk I/O: Disk activity is strictly isolated to append-only WAL writes and asynchronous file syncs, ensuring predictable sub-millisecond p99 latencies.

---

System Architecture

graph TD
    Client[TCP / mTLS Client] -->|Custom Binary Protocol :9000| Server[Dual-Protocol Ingestion Server]
    UDPClient[UDP Telemetry Agent] -->|Loss-Tolerant Streams :9001| Server
    Prometheus[Prometheus Scraper] -->|GET /metrics :2112| MetricsEngine[Zero-Alloc Metrics Engine]

    Server -->|1. Append & Fsync| WAL[(Write-Ahead Log)]
    Server -->|2. Concurrent Insert| MemTable[Active MemTable <br/> Lock-Free SkipList]
    Server -->|Point Read / Scan| MemTable
    Server -->|Atomic Observe| MetricsEngine

    MemTable -->|Flushes at 4MB| L0[Level 0 SSTables]

    Server -->|Read Miss| Bloom[Bloom Filters]
    Bloom -.->|Filter Hit: 99% Precision| L0
    Bloom -.->|Filter Hit: 99% Precision| L1[Level 1 SSTables]

    L0 -->|Background Compactor <br/> K-Way Min-Heap Merge| L1

Loading

---

Core Features

Feature	Implementation Details
Mutual TLS (mTLS)	Full two-way certificate verification via Go standard library crypto/tls (TLS 1.3), isolating TLS handshakes from zero-allocation frame parsing.
Dual-Protocol Ingestion	Guaranteed delivery for database mutations over TCP, coupled with concurrent non-blocking UDP ingestion (net.ListenUDP) with bounded buffer pools and drop protection.
Production Observability	Pure Go stdlib Prometheus exposition (/metrics) tracking TCP throughput, parsing latency, UDP packet drops, MemTable swaps, and WAL fsync durations with zero hot-path allocations.
Grafana Dashboard	Pre-packaged local Grafana dashboard (assets/grafana-dashboard.json) visualizing RED metrics, latency histograms, and engine internals in real-time.
Lock-Free MemTable	Uses a concurrent SkipList and Go's sync/atomic primitives to eliminate thread contention under heavy write load.
Crash-Safe Durability	Implements Write-Ahead Logging (WAL) with double-buffering and CRC32 checksums. Ensures zero data loss up to the last network ACK.
Disk-Optimized SSTables	Append-only Sorted String Tables featuring integrated custom Bloom Filters (bit arrays) to mathematically eliminate disk reads for non-existent keys.
RCU Compaction	A dedicated background worker pool merges Level-0 files into sorted Level-1 files asynchronously using RCU reference counting.
Ordered Range Queries	Multi-layer Scan(startKey, endKey) traversing MemTables and SSTables in ascending key order with lock-free RCU safety.
Official Go Client SDK	Pre-packaged client library (pkg/client) providing connection pooling, mTLS, UDP telemetry, and full CRUD + Scan operations.

---

Production Observability & RED Architecture

The RED Metrics Framework (Google SRE Standard)

Forest implements Google SRE's industry-standard RED (Rate, Errors, Duration) observability model. All metrics are exposed natively on GET /metrics in Prometheus text format:

Metric Category	Prometheus Metric Name	Type	Labels	Operational & Production Value
Rate (R)	forest_tcp_requests_total	Counter	op="put|get|delete|scan", status="ok"	Real-time QPS per opcode; used for capacity planning and load forecasting.
Rate (R)	forest_udp_packets_total	Counter	none	Ingestion velocity of ephemeral telemetry and node heartbeats.
Errors (E)	forest_tcp_requests_total	Counter	status="err"	Malformed payloads, key rejections, or socket framing errors.
Errors (E)	forest_udp_drops_total	Counter	none	Corrupted UDP datagrams or drops caused by queue saturation.
Duration (D)	forest_tcp_request_latency_seconds	Histogram	le="0.0001", "0.0005", ...	High-resolution request duration histograms for calculating p50, p95, and p99 SLOs.
Duration (D)	forest_wal_sync_duration_seconds	Histogram	le="0.0005", "0.001", ...	Kernel fsync execution latency; immediately diagnoses underlying physical disk stalls.
Engine Health	forest_memtable_swaps_total	Counter	none	MemTable freeze rate; alerts when disk write speed lags behind memory ingestion.
Runtime Health	go_goroutines	Gauge	none	Goroutine leak detection and concurrency health monitoring.

Live Prometheus Telemetry (GET /metrics)

Scrape real-time statistics from any running instance:

curl -s http://127.0.0.1:2112/metrics

# HELP forest_tcp_requests_total Total TCP database requests processed
# TYPE forest_tcp_requests_total counter
forest_tcp_requests_total{op="put",status="ok"} 45000
forest_tcp_requests_total{op="get",status="ok"} 12000
forest_tcp_requests_total{op="scan",status="ok"} 1500
forest_tcp_requests_total{op="put",status="err"} 0

# HELP forest_tcp_request_latency_seconds Latency of TCP request handling
# TYPE forest_tcp_request_latency_seconds histogram
forest_tcp_request_latency_seconds_bucket{le="0.0001"} 42800
forest_tcp_request_latency_seconds_bucket{le="0.0005"} 58000
forest_tcp_request_latency_seconds_bucket{le="0.001"} 58500
forest_tcp_request_latency_seconds_count 58500

# HELP forest_wal_sync_duration_seconds Latency of Write-Ahead Log sync operations
# TYPE forest_wal_sync_duration_seconds histogram
forest_wal_sync_duration_seconds_bucket{le="0.0005"} 850
forest_wal_sync_duration_seconds_bucket{le="0.001"} 920
forest_wal_sync_duration_seconds_count 920

# HELP forest_memtable_swaps_total Total MemTable freeze and swap events triggered
# TYPE forest_memtable_swaps_total counter
forest_memtable_swaps_total 8

# HELP forest_udp_packets_total Total UDP telemetry packets received
# TYPE forest_udp_packets_total counter
forest_udp_packets_total 10450

# HELP forest_udp_drops_total Total UDP telemetry packets dropped
# TYPE forest_udp_drops_total counter
forest_udp_drops_total 0

# HELP go_goroutines Number of goroutines that currently exist
# TYPE go_goroutines gauge
go_goroutines 8

Grafana Production Dashboard Walkthrough

A ready-to-deploy dashboard is provided in assets/grafana-dashboard.json. It provides 6 real-time monitoring panels:

Panel Title	Prometheus Metric Expression	Purpose
1. TCP Throughput (Ops/sec)	rate(forest_tcp_requests_total[1m])	Real-time traffic breakdown by operation (put, get, scan).
2. Request Latency Percentiles	histogram_quantile(0.99, rate(forest_tcp_request_latency_seconds_bucket[1m]))	Real-time p50, p95, and p99 latency SLAs.
3. WAL Fsync Latency	rate(forest_wal_sync_duration_seconds_sum[1m]) / rate(...)	Detects NVMe / SSD disk queue contention and file system write stalls.
4. MemTable Swap Rate	rate(forest_memtable_swaps_total[5m])	Visualizes 4MB memory partition rollover frequency.
5. UDP Ingestion vs Drops	rate(forest_udp_packets_total[1m]) vs rate(forest_udp_drops_total[1m])	Telemetry packet reliability and saturation monitoring.
6. Runtime Goroutines	go_goroutines	Verifies concurrency pool stability and prevents goroutine leaks.

Importing the Dashboard:

1. Open Grafana (http://localhost:3000) $\rightarrow$ Dashboards $\rightarrow$ New $\rightarrow$ Import.
2. Select or paste the contents of assets/grafana-dashboard.json.
3. Connect your Prometheus datasource (http://127.0.0.1:2112) for instant observability.

---

Dual-Protocol Ingestion & Isolation

Forest runs two separate protocol listeners in parallel:

1. TCP Listener (:9000): Dedicated to database mutations (Put, Get, Delete, Scan). Requires strict ACK guarantees and ensures zero data loss via synchronous WAL logging.
2. UDP Listener (:9001): Dedicated to high-frequency ephemeral telemetry (0x05) and node heartbeats (0x06). Packets are handled non-blockingly with bounded buffer recycling.

# Send a UDP Heartbeat packet directly via netcat:
# Magic Byte: 0xA1, OpHeartbeat: 0x06, Length: 0x0000
echo -ne '\xa1\x06\x00\x00' | nc -u -w1 127.0.0.1 9001

---

Mutual TLS (mTLS) Cluster Communication

Forest secures node-to-node communication using industry-standard TLS 1.3 mutual certificate verification:

• Both client and server validate each other's cryptographic identities against a trusted Certificate Authority (CA).
• Generates certificates instantly using the built-in --gen-certs flag:

# 1. Generate dev CA and signed certificates
./bin/forest --gen-certs

# 2. Start server in mTLS enforcement mode
./bin/forest --tls-cert=server.crt --tls-key=server.key --tls-ca=ca.crt --port=9000

---

Ordered Range Queries

Forest implements an ordered Scan(startKey, endKey) engine supporting prefix queries and range scans across all LSM-Tree storage tiers:

1. Multi-Layer Merging: Traverses the active MemTable (concurrent SkipList), immutable MemTable, and Level-0 / Level-1 SSTables in lexicographical key order.
2. Tombstone Suppression: Keys marked as deleted in newer layers suppress stale records residing in older SSTables.
3. Lock-Free RCU Protection: Read iterators acquire atomic reference counts on active SSTable manifests, guaranteeing readers remain immune to concurrent background compactions.

---

Official Go Client SDK (pkg/client)

The repository includes a production-ready, idiomatic Go client SDK with built-in connection pooling, mTLS negotiation, UDP telemetry streaming, and range scans:

package main

import (
    "fmt"
    "log"
    "time"

    "github.com/Forest_DatabaseEngine/pkg/client"
)

func main() {
    // Connect with TCP, optional mTLS, and UDP telemetry:
    cli, err := client.New("127.0.0.1:9000",
        client.WithUDP("127.0.0.1:9001"),
        client.WithTimeout(3*time.Second),
        // client.WithTLS("client.crt", "client.key", "ca.crt", "localhost"),
    )
    if err != nil {
        log.Fatalf("Failed to connect to Forest: %v", err)
    }
    defer cli.Close()

    // 1. Put (Insert / Update)
    if err := cli.Put([]byte("sensor:001"), []byte("24.5C")); err != nil {
        log.Fatal(err)
    }

    // 2. Get (Point Lookup)
    val, found, err := cli.Get([]byte("sensor:001"))
    if err != nil || !found {
        log.Fatalf("Key not found or error: %v", err)
    }
    fmt.Printf("Retrieved value: %s\n", string(val))

    // 3. Scan (Ordered Range Query)
    results, err := cli.Scan([]byte("sensor:000"), []byte("sensor:999"))
    if err != nil {
        log.Fatal(err)
    }
    for _, item := range results {
        fmt.Printf("Key: %s | Value: %s\n", string(item.Key), string(item.Value))
    }

    // 4. Non-Blocking UDP Telemetry & Heartbeat
    _ = cli.SendHeartbeat()
    _ = cli.SendTelemetry([]byte("node_health=healthy;cpu_load=14%"))
}

---

Custom Binary Protocol Specification

To maximize wire throughput, Forest uses a compact 8-byte TCP header and a 4-byte UDP telemetry header, eliminating the parsing overhead of JSON or HTTP/REST.

TCP Request Framing (8 Bytes)

+---------------+---------------+---------------+-------------------------------+
|   MagicByte   |    OpCode     |  Key Length   |         Value Length          |
|    (0xA1)     |    (1 Byte)   |   (2 Bytes)   |           (4 Bytes)           |
+---------------+---------------+---------------+-------------------------------+
|                         Payload (Key Bytes + Value Bytes)                     |
+-------------------------------------------------------------------------------+

Field	Size	Description
Magic Byte	1 Byte	Validation byte (0xA1) to reject malformed or invalid packets immediately.
OpCode	1 Byte	Operation type: 0x01 (Echo), 0x02 (Put), 0x03 (Get), 0x04 (Delete), 0x07 (Scan).
Key Length	2 Bytes	Big-endian unsigned 16-bit integer defining key length in bytes.
Value Length	4 Bytes	Big-endian unsigned 32-bit integer defining payload length in bytes.
Payload	Variable	Raw contiguous byte slice containing Key + Value.

UDP Telemetry Framing (4 Bytes)

+---------------+---------------+-------------------------------+
|   MagicByte   |    OpCode     |        Payload Length         |
|    (0xA1)     |    (1 Byte)   |           (2 Bytes)           |
+---------------+---------------+-------------------------------+
|                         Payload Bytes                         |
+---------------------------------------------------------------+

Field	Size	Description
Magic Byte	1 Byte	Validation byte (0xA1).
OpCode	1 Byte	0x05 (Telemetry Datagram) or 0x06 (Node Heartbeat).
Payload Length	2 Bytes	Big-endian unsigned 16-bit integer defining telemetry payload length.
Payload	Variable	Raw loss-tolerant metrics or heartbeat payload.

---

Project Layout

.
├── cmd/
│   └── server/          # Main entrypoint with CLI flags for TCP, UDP, mTLS, and Prometheus
├── pkg/
│   └── client/          # Official Go Client SDK (TCP, mTLS, UDP, and Scan operations)
├── internal/
│   ├── engine/          # LSM-Tree engine core (MemTable, SkipList, SSTables, WAL, Bloom Filter, Compactor)
│   ├── network/         # Dual-protocol server, mTLS TLS helpers, zero-allocation TCP/UDP binary parsers
│   └── metrics/         # Zero-allocation stdlib Prometheus metrics registry and /metrics HTTP handler
├── assets/              # Architecture diagrams, flamegraphs, and Grafana dashboard JSON
├── scripts/             # Chaos engineering and benchmarking automation scripts
├── FutureScope/         # Forward-looking distributed roadmap (Raft, io_uring, mmap, compression)
├── data/                # Local storage directory for WAL and SST files (gitignored)
└── README.md

---

Roadmap & Future Scope

While Forest provides a production-grade single-node storage engine, it was engineered from day one as the foundation for a distributed database cluster.

Under our Forward-Facing Always governance policy, FutureScope/FUTURE_SCOPE.md tracks unbuilt upcoming horizons only. The moment a feature is implemented and validated, it is moved to this README and excised from Future Scope.

Explore the active roadmap detailing Raft Consensus Replication, Linux io_uring Kernel Bypass, mmap Memory-Mapped SSTables, Block-Level LZ4 Compression, MVCC Snapshot Isolation, and Polyglot SDKs in FutureScope/FUTURE_SCOPE.md.

---

Contact

Mrigank Bhatnagar

• LinkedIn
• GitHub
